1993 Jeep Cherokee

GENERAL INFORMATION

Gear Tooth Contact Patterns

* PLEASE READ THIS FIRST *

The following article is for GENERAL INFORMATION purposes only. Information does not SPECIFICALLY apply to all years, makes and models, but is to be used as a general reference guide.

INSPECTION

PRELIMINARY INSPECTION

Wipe lubricant from internal parts. Rotate gears and inspect for wear or damage. Mount dial indicator to housing, and check backlash at several points around ring gear. Backlash must be within specifications at all points. If no defects are found, check gear tooth contact pattern.

GEAR TOOTH CONTACT PATTERN

NOTE: Drive pattern should be well centered on ring gear teeth.

Coast pattern should be centered, but may be slightly toward toe of ring gear teeth.

  1. Paint ring gear teeth with marking compound. Wrap cloth or
    rope around drive pinion flange to act as brake. Rotate ring gear
    until clear tooth contact pattern is obtained.

  2. Contact pattern will indicate whether correct pinion
    bearing mounting shim has been installed and if drive gear backlash
    has been set properly. Backlash between drive gear and pinion must be
    maintained within specified limits, until correct tooth pattern is
    obtained.

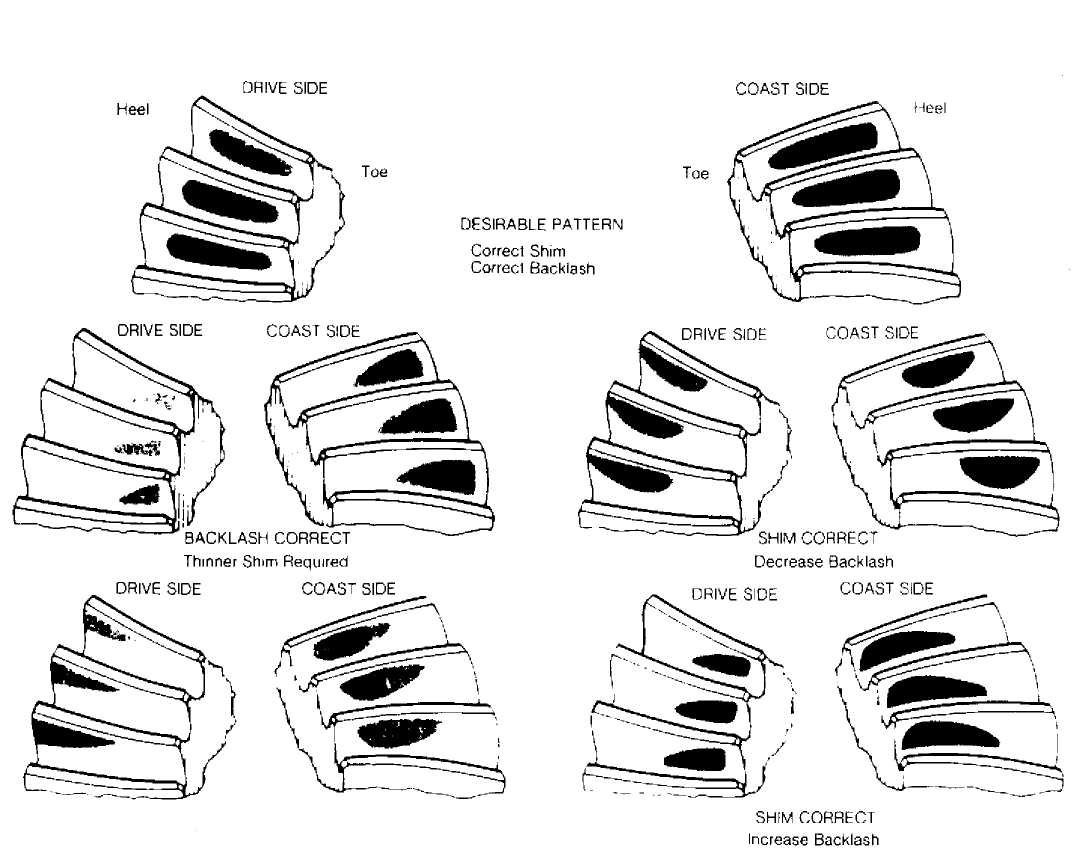

BACKLASH CORRECT Thicker Shim Required

Fig. 1: Drive Axle Gear Tooth Patterns

ADJUSTMENTS

GEAR BACKLASH & PINION SHIM CHANGES

NOTE: Backlash is adjusted by either moving shims from one side of differential case to the other or by turning adjusting nuts on which side bearing races ride. Changing of pinion shims alters the distance from face of pinion of centerline of ring gear.

  1. With no change in backlash, moving pinion further from
    ring gear moves drive pattern toward heel and top of tooth, and moves
    coast pattern toward toe and top of tooth.

  2. With no change in backlash, moving pinion closer to ring
    gear moves drive pattern toward toe and bottom of tooth, and moves
    coast pattern toward heel and bottom of tooth.

  3. With no change in pinion shim thickness, an increase in
    backlash moves ring gear further from pinion. Drive pattern moves
    toward heel and top of tooth, and coast pattern moves toward heel and
    top of tooth.

  4. With no change in pinion shim thickness, decrease in

backlash moves ring gear closer to pinion gear. Drive pattern moves toward toe and bottom of tooth, and coast pattern moves toward toe and bottom of tooth.
