1993 Jeep Cherokee

1993 System Wiring Diagrams Jeep - Cherokee

COOLING FAN

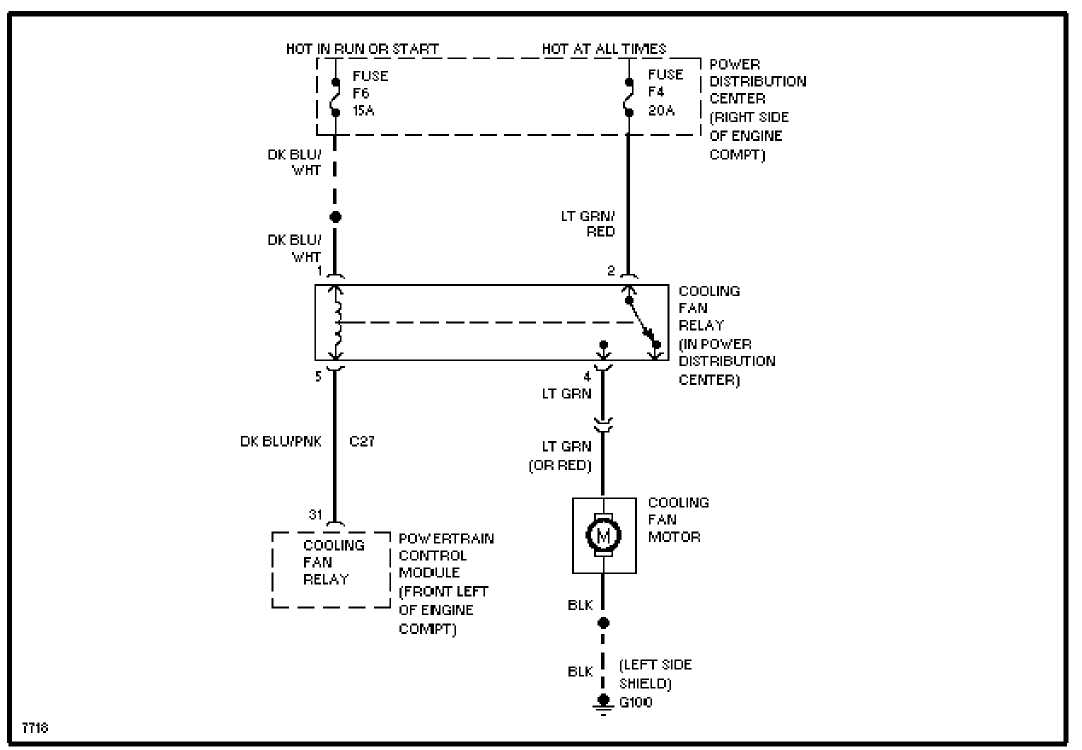

Cooling Fan Circuit

DEFOGGERS

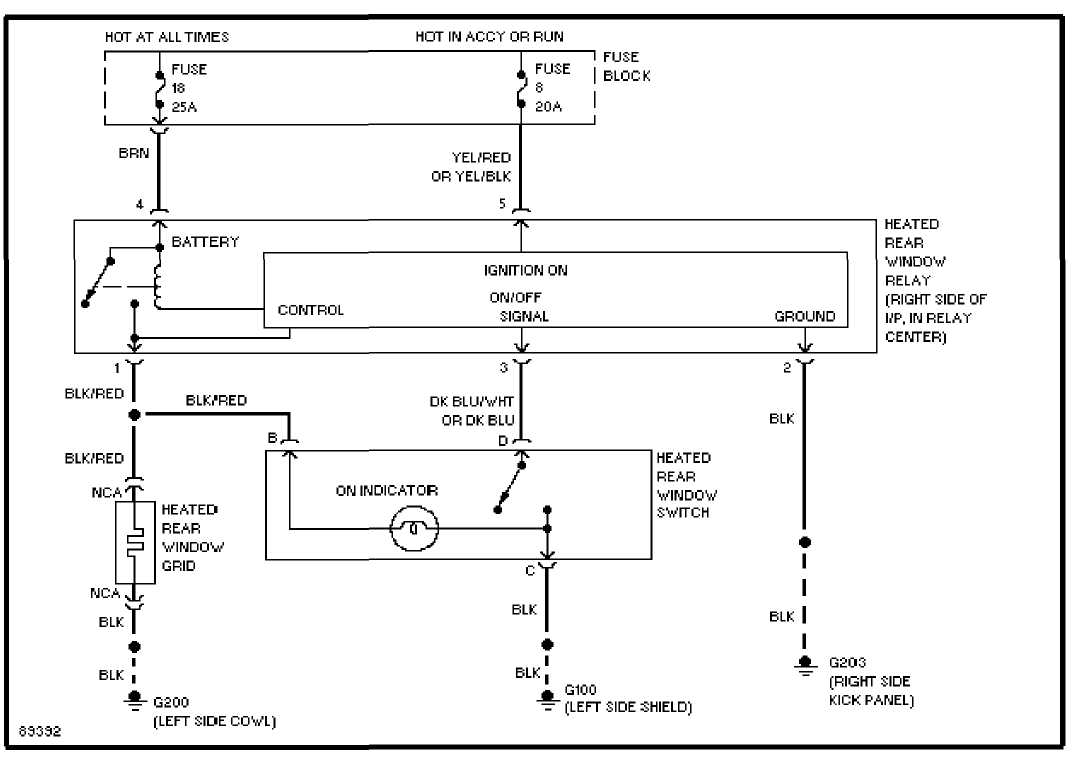

Defogger Circuit

HORN

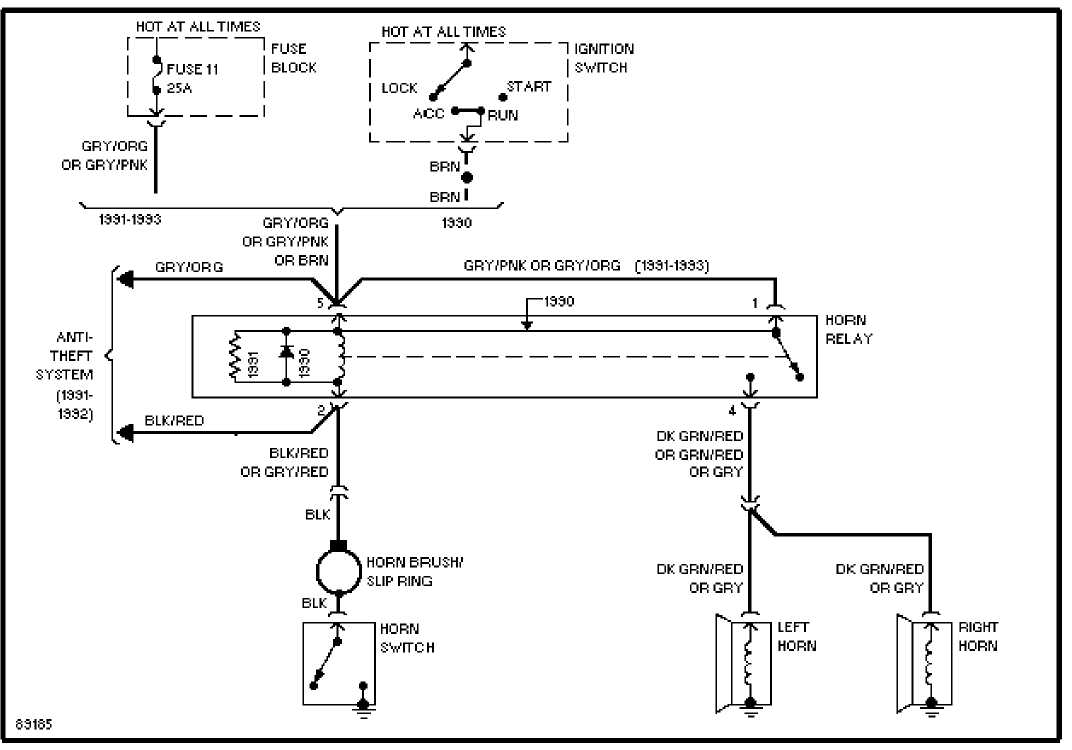

Horn Circuit

POWER DOOR LOCKS

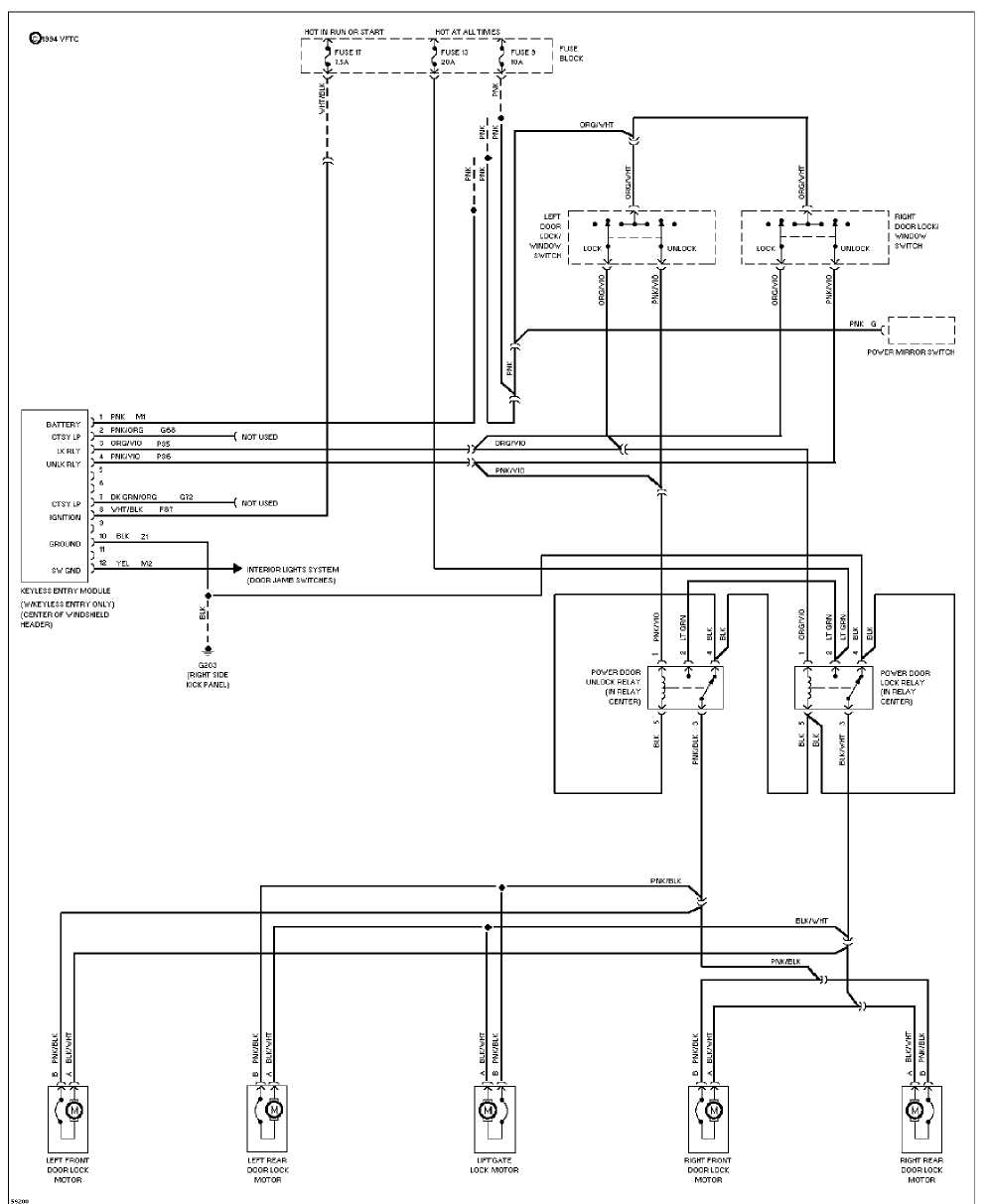

Door Lock & Keyless Entry Circuit

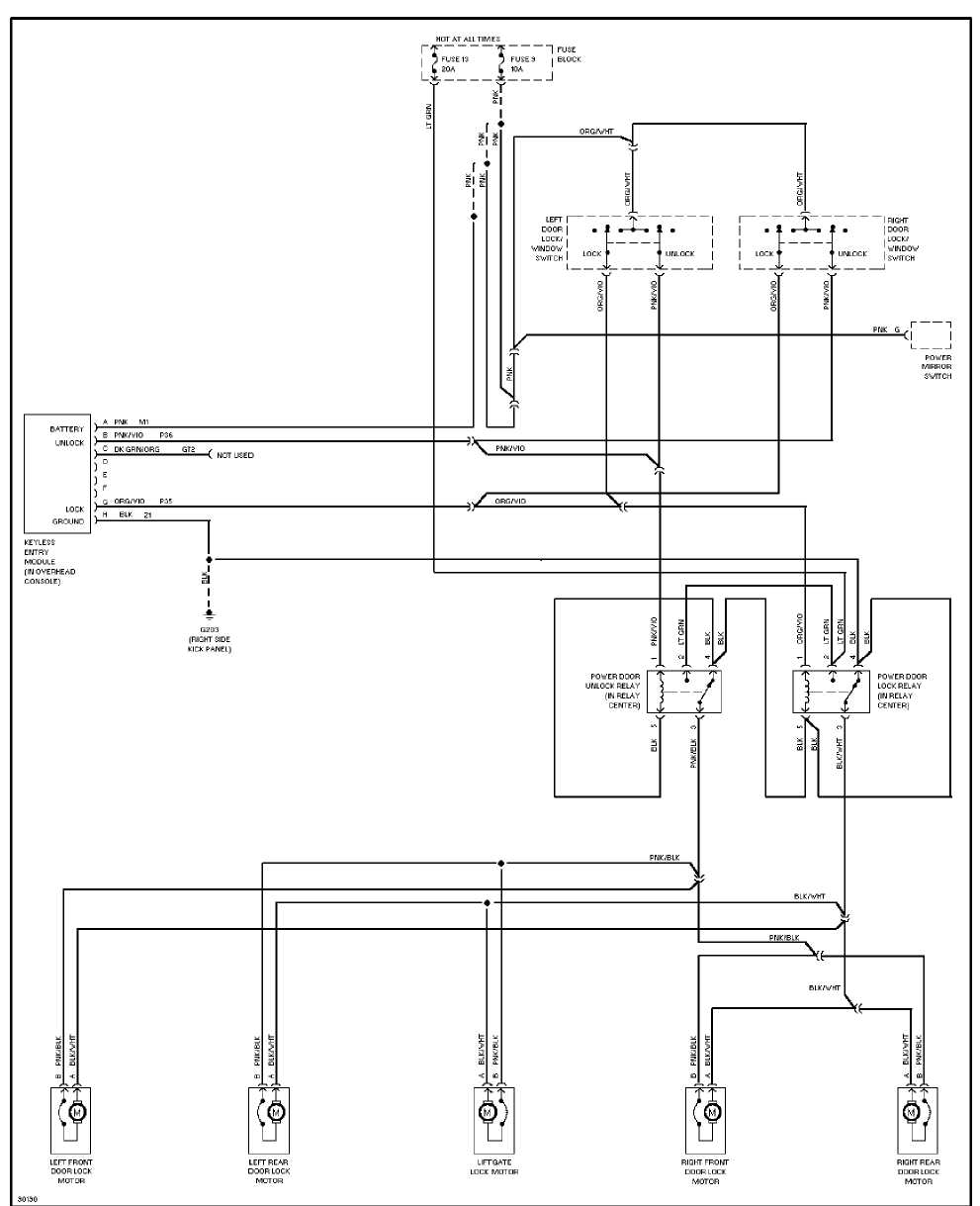

Power Door Lock Circuit

POWER MIRRORS

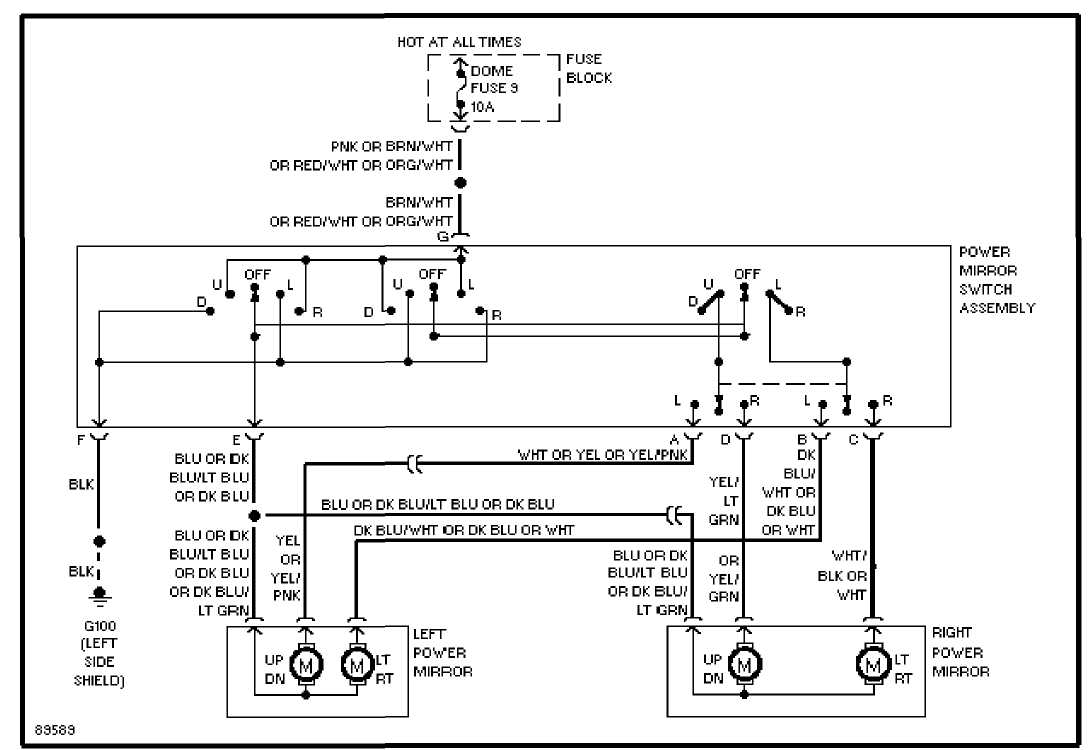

Power Mirror Circuit

POWER SEATS

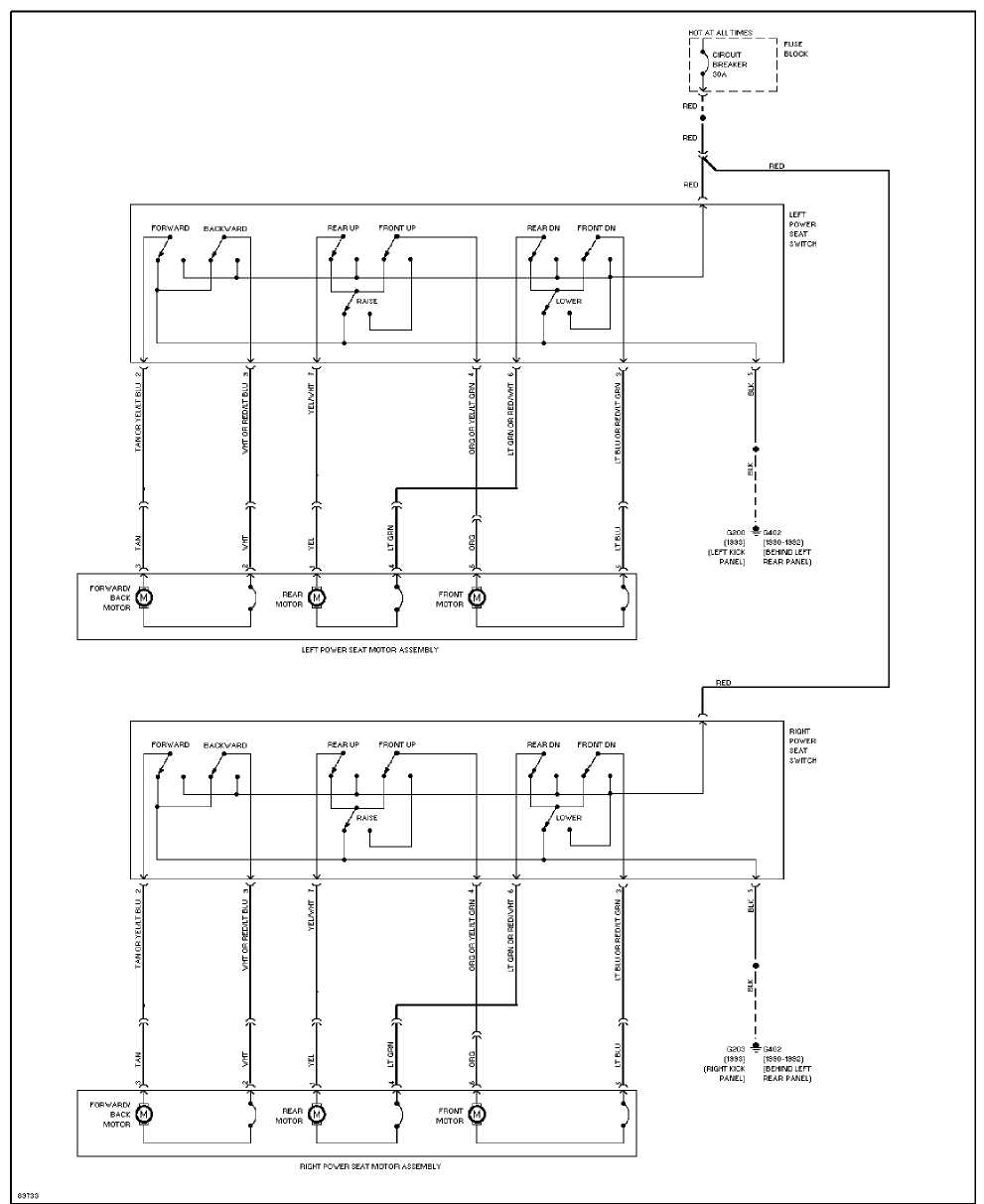

Power Seats Circuit

POWER WINDOWS

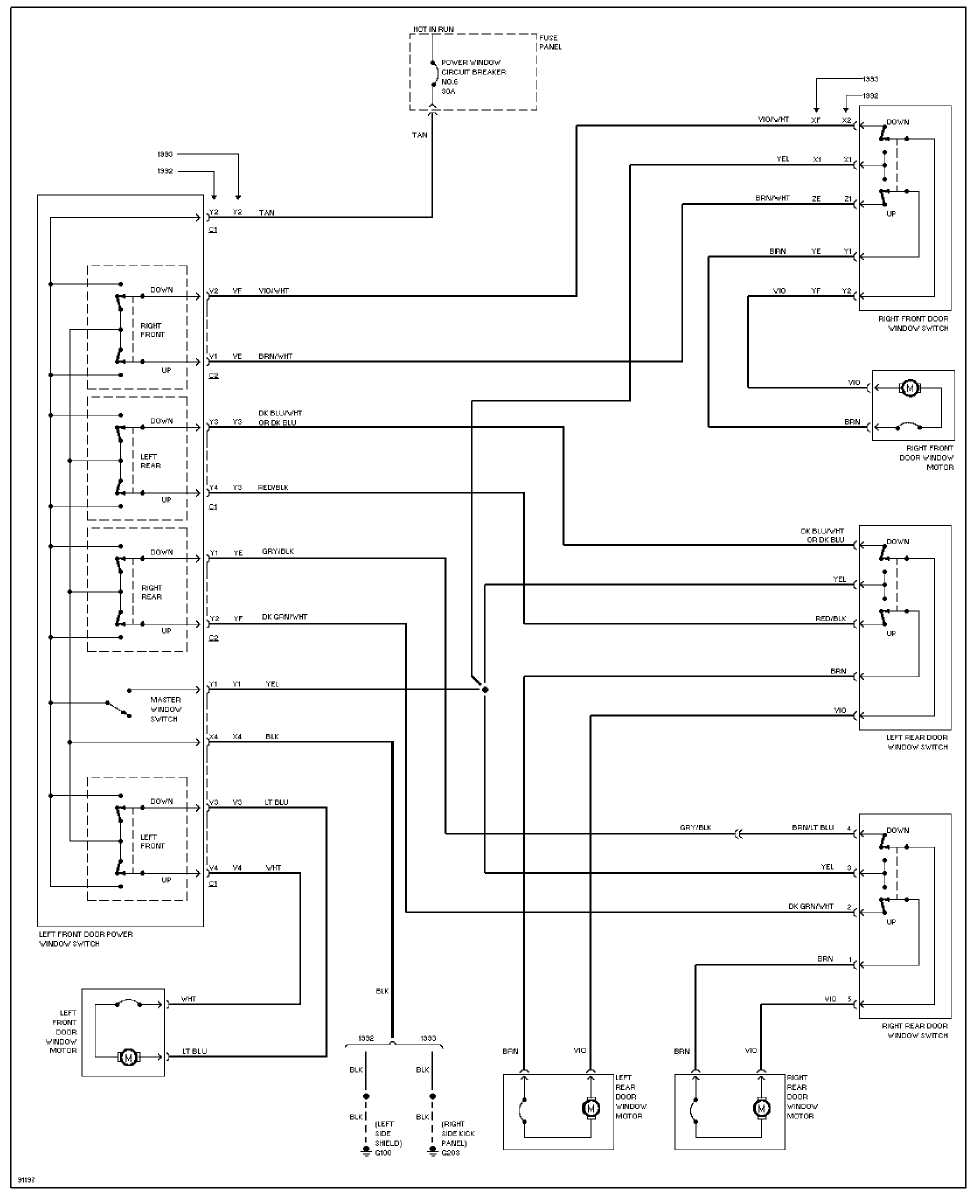

Power Window Circuit

RADIO

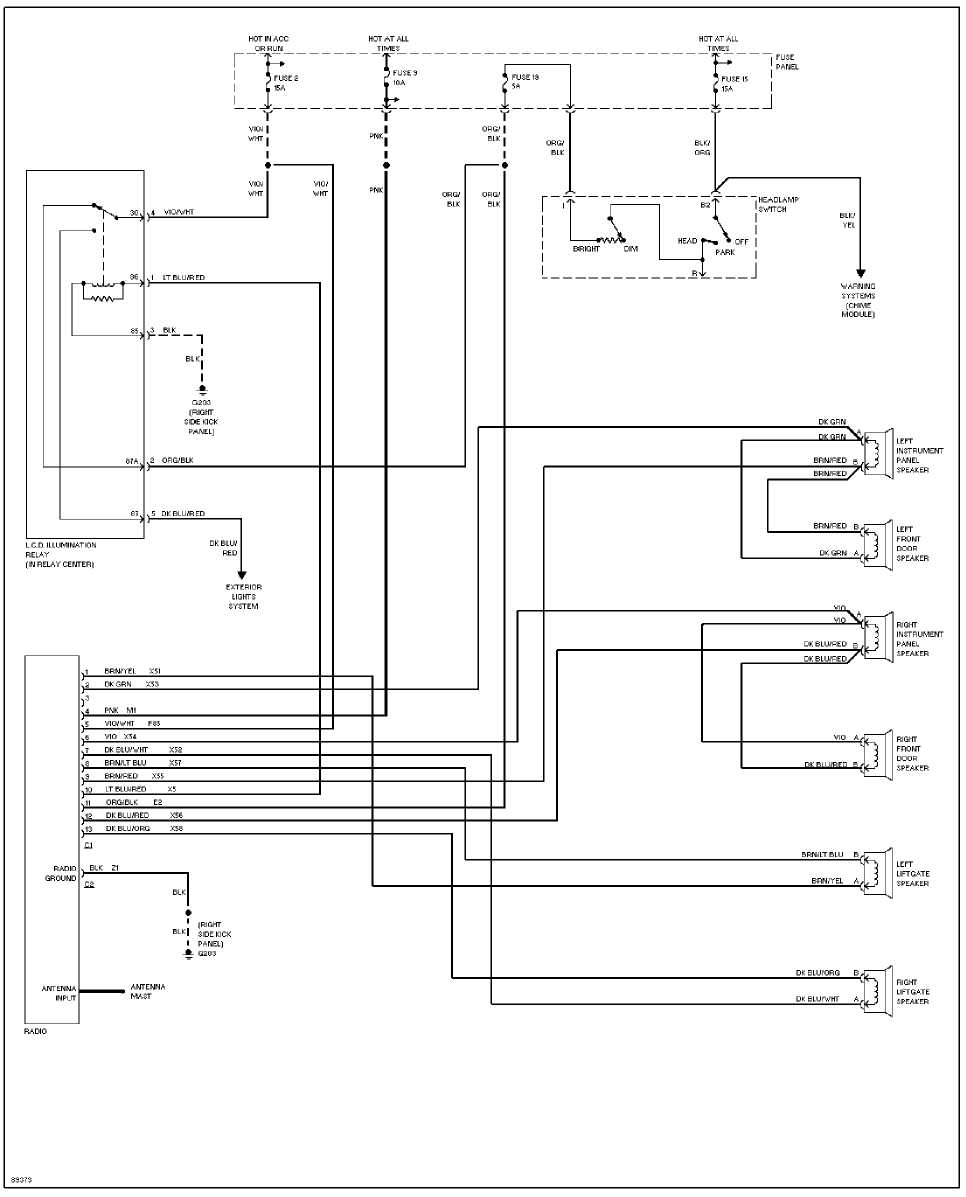

Radio Circuits

STARTING/CHARGING

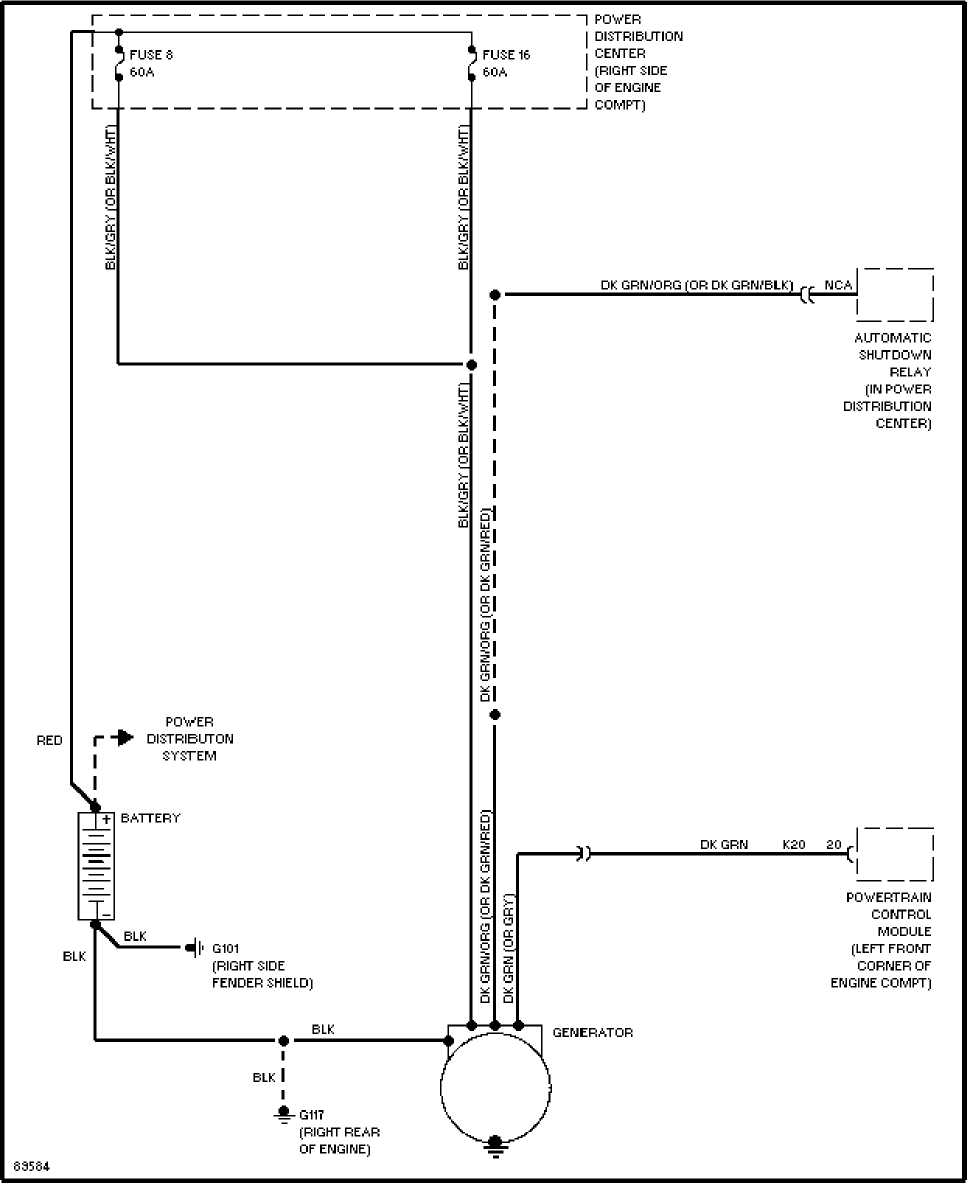

Charging Circuit

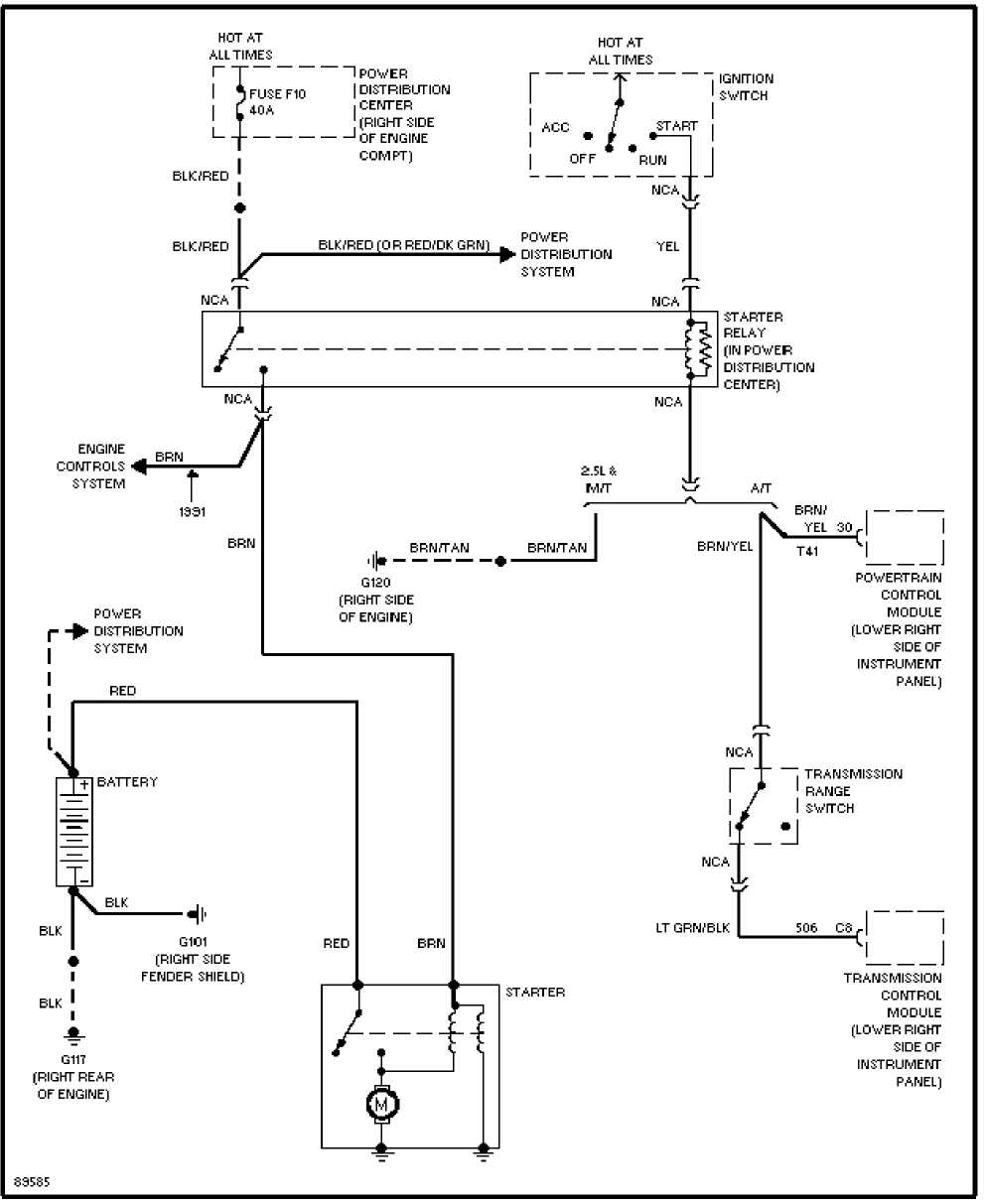

Starting Circuit

TRANSMISSION

Transmission Circuit

WIPER/WASHER

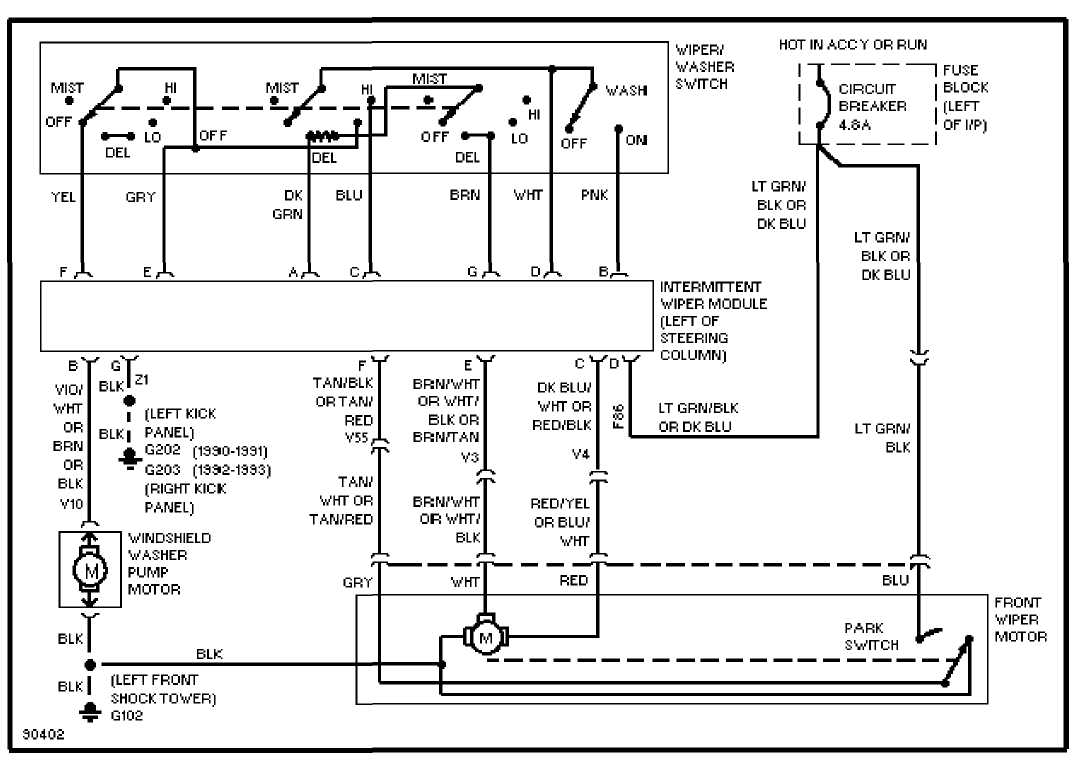

2-Speed Wiper/Washer Circuit

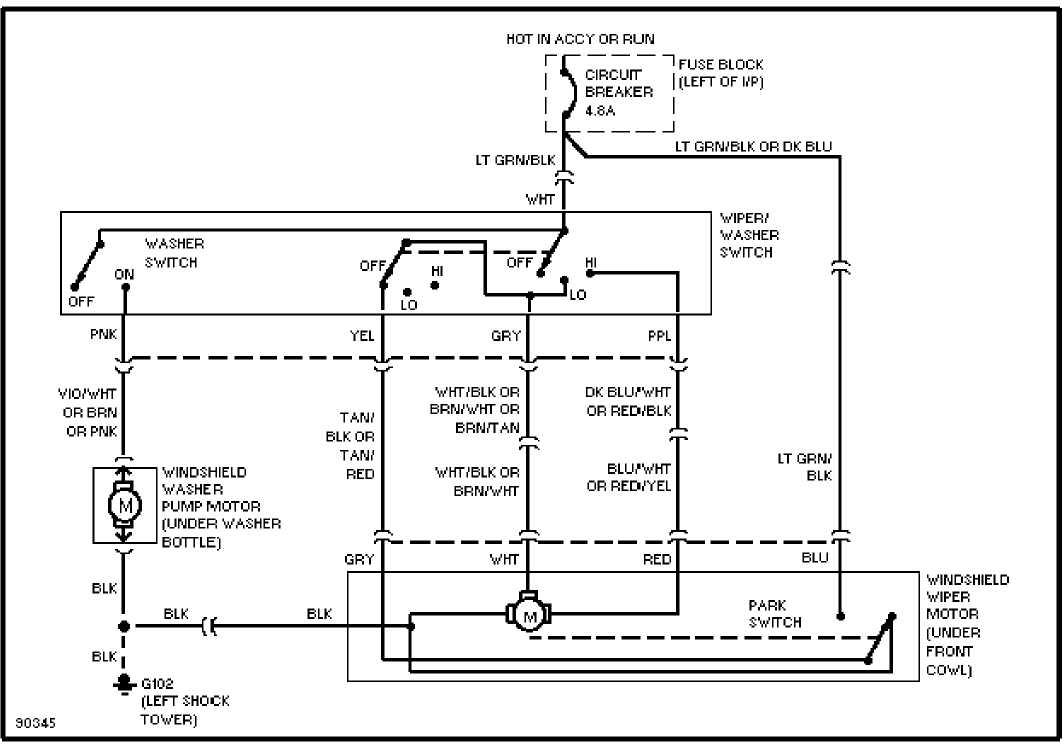

Interval Wiper/Washer Circuit

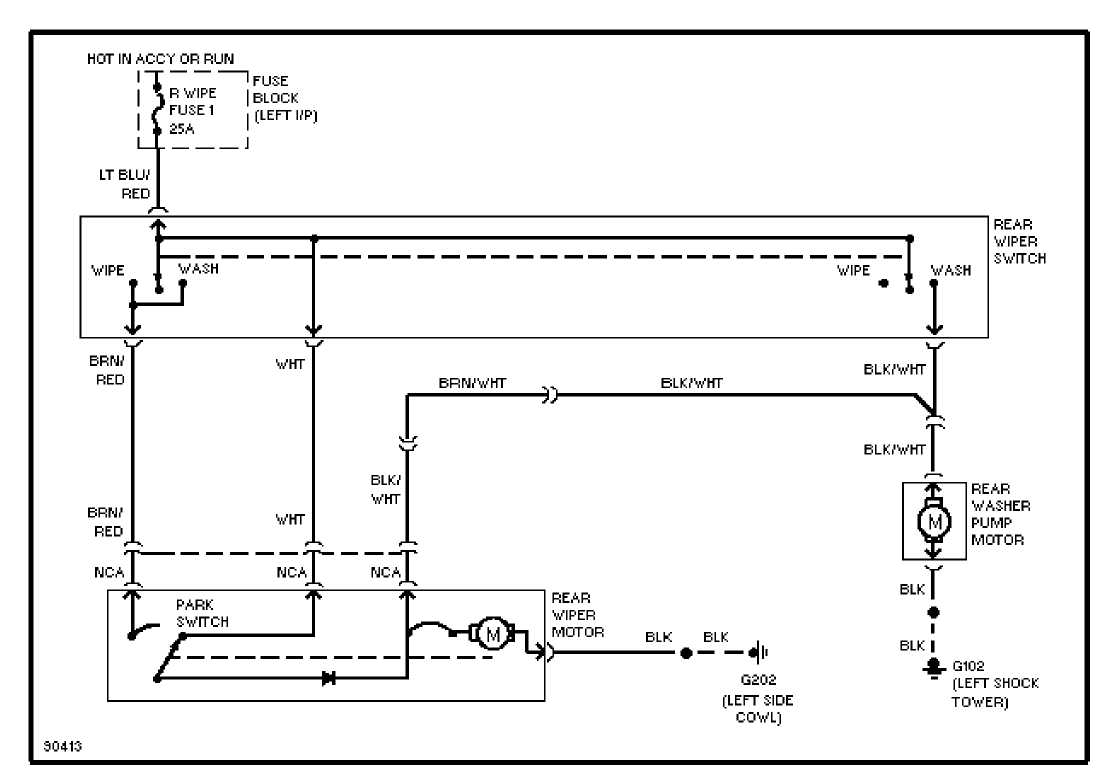

Rear Wiper/Washer Circuit
