TEST 5A - CODE 702 - SPEED SENSOR CIRCUIT

NOTE:
Perform TEST 1A - VERIFICATION OF THE COMPLAINT
before proceeding.

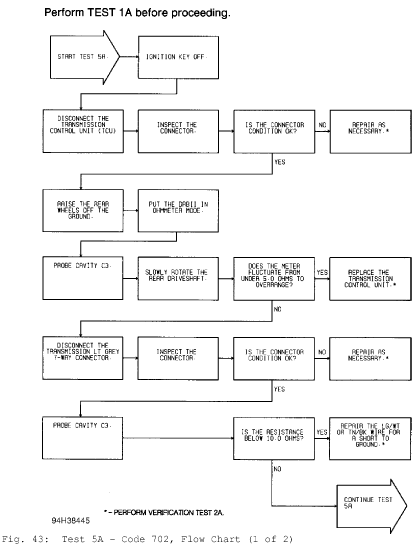

Fig. 43: Test 5A - Code 702, Flow Chart (1 of 2)

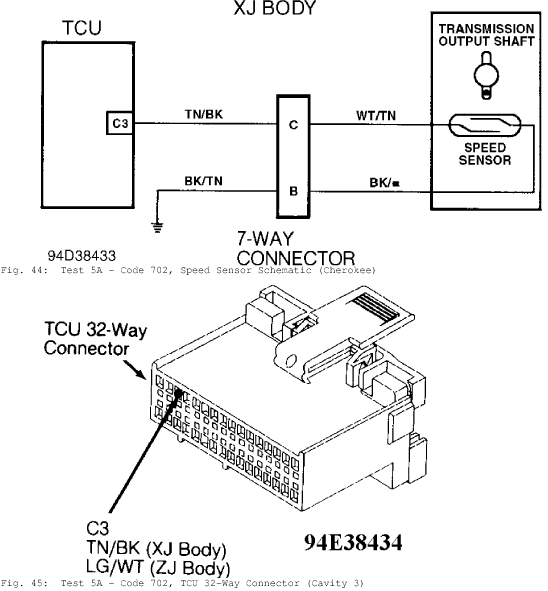

Fig. 44: Test 5A - Code 702, Speed Sensor Schematic (Cherokee) Fig. 45: Test 5A - Code 702, TCU 32-Way Connector (Cavity 3)

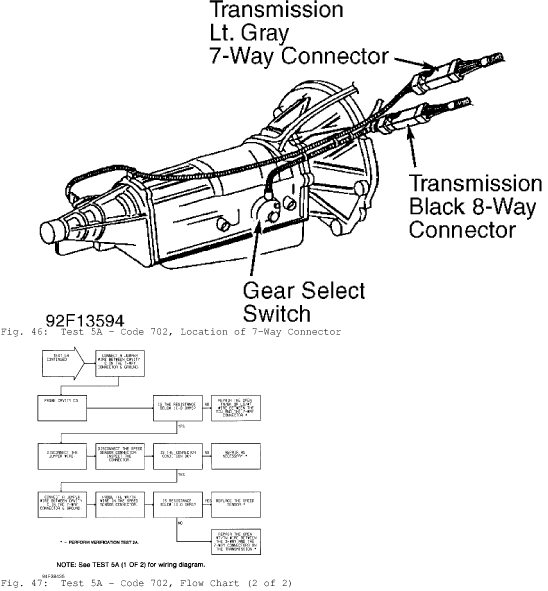

Fig. 46: Test 5A - Code 702, Location of 7-Way Connector Fig. 47: Test 5A - Code 702, Flow Chart (2 of 2)

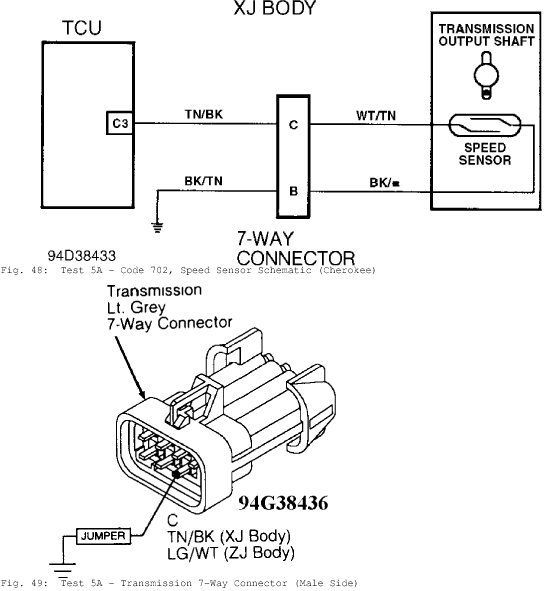

Fig. 48: Test 5A - Code 702, Speed Sensor Schematic (Cherokee) Fig. 49: Test 5A - Transmission 7-Way Connector (Male Side)

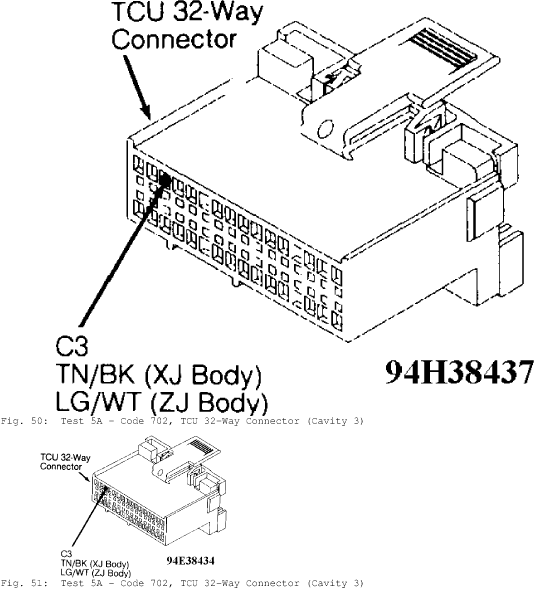

Fig. 50: Test 5A - Code 702, TCU 32-Way Connector (Cavity 3) Fig. 51: Test 5A - Code 702, TCU 32-Way Connector (Cavity 3)

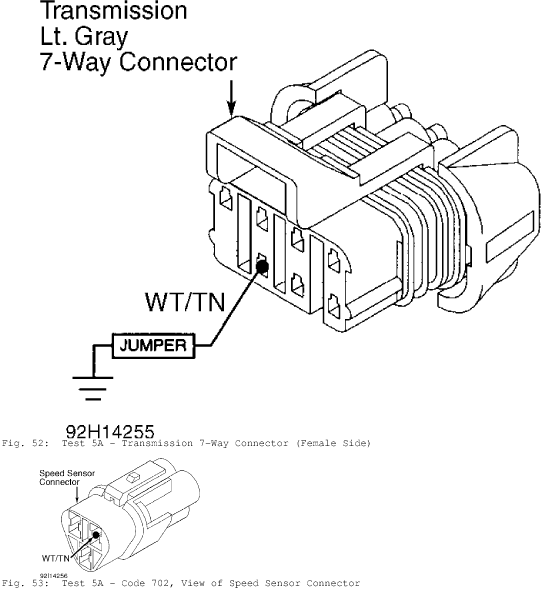

Fig. 52: Test 5A - Transmission 7-Way Connector (Female Side) Fig. 53: Test 5A - Code 702, View of Speed Sensor Connector TEST 6A - CODE 703 - GEAR SELECT SWITCH CIRCUIT

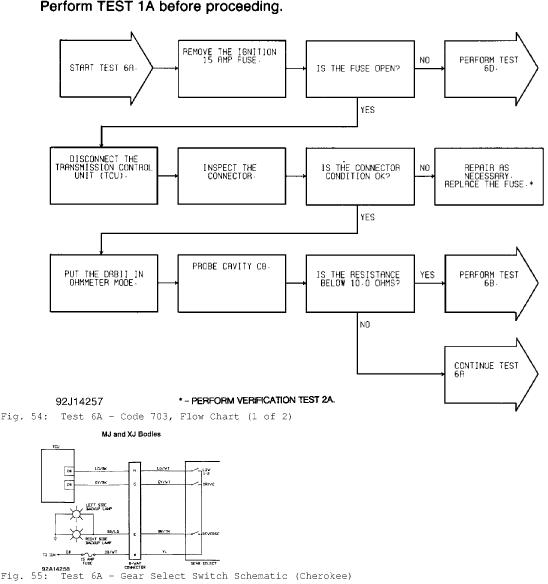

Fig. 54: Test 6A - Code 703, Flow Chart (1 of 2) Fig. 55: Test 6A - Gear Select Switch Schematic (Cherokee)

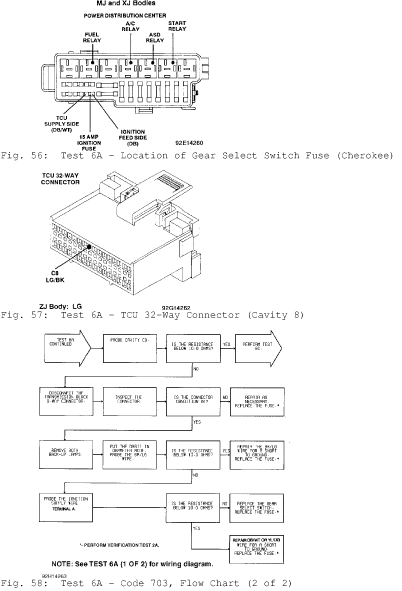

Fig. 56: Test 6A - Location of Gear Select Switch Fuse (Cherokee) Fig. 57: Test 6A - TCU 32-Way Connector (Cavity 8) Fig. 58: Test 6A - Code 703, Flow Chart (2 of 2)

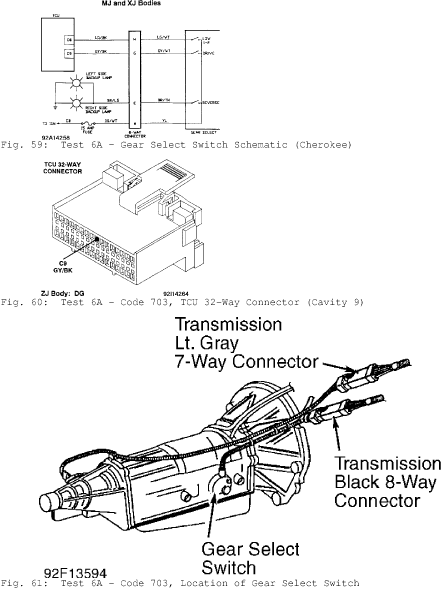

Fig. 59: Test 6A - Gear Select Switch Schematic (Cherokee) Fig. 60: Test 6A - Code 703, TCU 32-Way Connector (Cavity 9) Fig. 61: Test 6A - Code 703, Location of Gear Select Switch

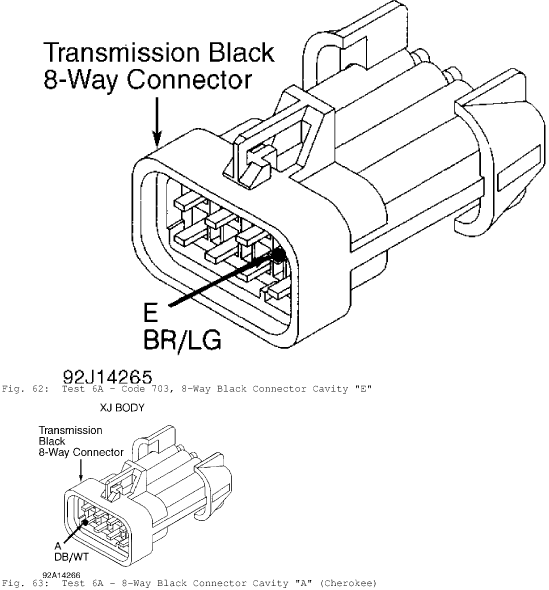

Fig. 62: Test 6A - Code 703, 8-Way Black Connector Cavity "E" Fig. 63: Test 6A - 8-Way Black Connector Cavity "A" (Cherokee) TEST 6B - CODE 703 - GEAR SELECT SWITCH CIRCUIT NOTE: Perform TEST 6A - CODE 703 - GEAR SELECT SWITCH CIRCUIT before proceeding.
