1993 Jeep Cherokee
NOTE:
1993 ENGINE COOLING
Chrysler Corp. Drive Belt Routing
Jeep; Cherokee, Grand Cherokee, Wrangler
Information for Grand Cherokee and Grand Wagoneer with 5.2L V8 engine is not available from manufacturer.
SPECIFICATIONS
BELT ADJUSTMENT
Loosen rear mounting bolts of idler pulley or power steering pump (if equipped). Loosen power steering pivot bolt and lock nut (if equipped). Turn adjusting bolt to tighten belt to specification. See BELT TENSION table. Tighten bolts and lock nut to 20 ft. lbs. (27 N. m) . For serpentine belt routing, see Fig. 1.
BELT TENSION TABLE (1)
Application New Belt Used Belt
Serpentine Belt 180-200 (82-91) 140-160 (64-73)
(1) - Tension in lbs. (kg) using strand tension gauge.

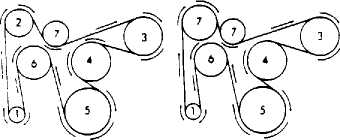

Cherokee & Wrangler (2.5L Engine) Grand Cherokee (Without A/C)
Grand Cherokee (With A/C)
Alternator
A/C Compressor
Power Steering Pump
Water Pump
Crankshaft
Cooling Fan
Idler Pulley

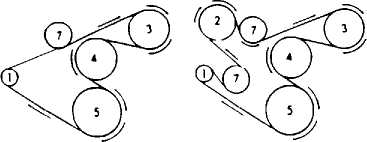

Cherokee & Wrangler (4.0L Engine With A/C)
Cherokee & Wrangler (4.0L Engine Without A/C)
93A75911
Fig. 1: Routing Serpentine Belts Courtesy of Chrysler Corp.
