1993 Jeep Cherokee

1993 WIRING DIAGRAMS Jeep Wiring Diagrams

Jeep; Cherokee IDENTIFICATION COMPONENT LOCATION MENU

COMPONENT LOCATIONS TABLE

Component Location (Fig. No.)

A/C COMP CLUTCH RELAY B 19 (5)

A/C HEATER LT B 11 (3)

A/C MODE SELECT SW A 1617 (5)

A/C THERMOSTAT B 19 (5)

ABS MAIN RELAY C 15 (4)

ABS PUMP/MOTOR RELAY A 15 (4)

ALTERNATOR E 3 (1)

ANTI-LOCK BRAKE A-D 12 (4)

ANTI-THEFT (11 & 12)

ASHTRAY LT B 11 (3)

AUTO SHUTDOWN RELAY A 7 (2)

BACK-UP LT SW B 16 (5)

BALLAST RESISTOR RELAY C 7 (2)

BATTERY A 2 (1)

BEAM SELECT SW D-E 23 (6)

BLOWER MOTOR A 19 (5)

BRAKE WARN SW A 8 (3)

CARGO LT A 34 (9)

CCD DATA LINK CONN D 19 (5)

CHIME MODULE B 8 (3)

CIG LTR C 11 (3)

CIG LTR LT C 11 (3)

COOLING FAN RELAY B 16 (5)

COURTESY LTS A 33 (9)

CRUISE CONTROL SERVO A 20 (6)

CRUISE CONTROL SW A-B 2 0 (6)

DEFOG SW LT B 11 (3)

DEFOG SYSTEM E 3435 (9)

DIR FLASHER C 9 (3)

DIR/HAZARD SW C-D 19 (5)

DOME/READING LT A 32 (9)

DOOR LOCKS SWS B-C 2 6 (7)

DOOR SWS A 35 (9)

ECE CONN E 19 (5)

ENGINE DIAG CONN D 7 (2)

FOG LT RELAY E 2 (1)

FOG LT SW A 27 (7)

FRONT AXLE LOCK-UP SW D 2 7 (7)

FRONT WASHER MOTOR D 22 (6)

FUEL PUMP RELAY B 7 (2)

FUEL TANK UNIT B 7 (2)

FUSE BLOCK C-E 910 (3)

GEAR SELECT SW C 16 (5)

GLOVE BOX LT A 34 (9)

HAZARD FLASHER E 10 (3)

HEADLT DELAY MODULE E 23 (7)

HEADLT SW B-D 2 3 (6)

HEATER MODE SELECT SW A 18 (5)

HORN RELAY E 3 (1)

IGNITION COIL D 7 (2)

IGNITION SW A 8-11 (3)

ILLUM LTS B-C 11 (3)

INSTRUMENT CLUSTER A-C 2 427 (7)

KEY IN SW C 19 (5)

KEYLESS ENTRY MODULE A 31 (8)

LCD ILLUM RELAY B 23 (6)

LEFT FRONT DOOR SW B 35 (9)

LIFTGATE LT SW A 35 (9)

LOCK RELAY B 31 (8)

PARK BRAKE SW A 8 (3)

POWER DISTRIBUTION CENTER (PDC) B-D 3 (1)

POWER DOOR LOCK SYSTEM A-B 2 831 (8)

POWER MIRRORS D-E 3234 (9)

POWER SEAT B-D 3233 (9)

POWER WINDOWS E 31 (8)

REAR WASHER MOTOR B 35 (9)

REAR WIPER LT B 11 (3)

REAR WIPER/WASHER B-C 3335 (9)

SEAT BELT SW B 8 (3)

STARTER A 2 (1)

STARTER RELAY A 3 (1)

STOP LT RELAY E 36 (10)

STOP LT SW A 23 (6)

TRAILER CONN A 36 (10)

TRAILER TOW IN-LINE CB E 37 (10)

TRANS CONTROL UNOT (TCU) D-E 16 (5)

TRANSFER CASE LT B 11 (3)

TRANSMISSION E 1716 (5)

TRANSMISSION RANGE RW LT B 11 (3)

UNDERHOOD LT B 1 (1)

VANITY LTS A 3233 (9)

W/SHIELD WIPER SW C-E 20 (6)

WARNING INDICATORS D 242 7 (7)

WASHER FLUID LEVEL SW C-D 2 7 (7)

WIPER CIRCUIT BREAKER C 9 (3)

WIPER MOTOR D 22 (6)

GROUND LOCATIONS TABLE

Component Location (Fig. No.)

GROUND A: (RIGHT SIDE FENDER SHIELD) A 1 (1)

GROUND B: (RIGHT REAR OF ENGINE 4.0L) A 1 (1)

GROUND C: (RIGHT REAR OF ENGINE) D 2 (1)

GROUND D: (RIGHT REAR OF ENGINE) D 7 (2)

GROUND E: (RIGHT SIDE OF ENGINE 2.5L) E 4 (2)

(RIGHT REAR OF ENGINE 4.0L) E 4 (2)

GROUND F: (LEFT SIDE SHIELD) A 15 (4)

GROUND G: (LEFT SIDE COWL) A-B 13 (4)

GROUND H: (RIGHT SIDE SHIELD) B 22 (6)

GROUND I: (LEFT SIDE SHIELD) E 24 (7)

GROUND J: (RIGHT SIDE KICK PANEL) E 26 (7)

GROUND K: (LEFT SIDE COVER) E 39 (10)

WIRING DIAGRAMS

1 I 2 I 3

93E77838

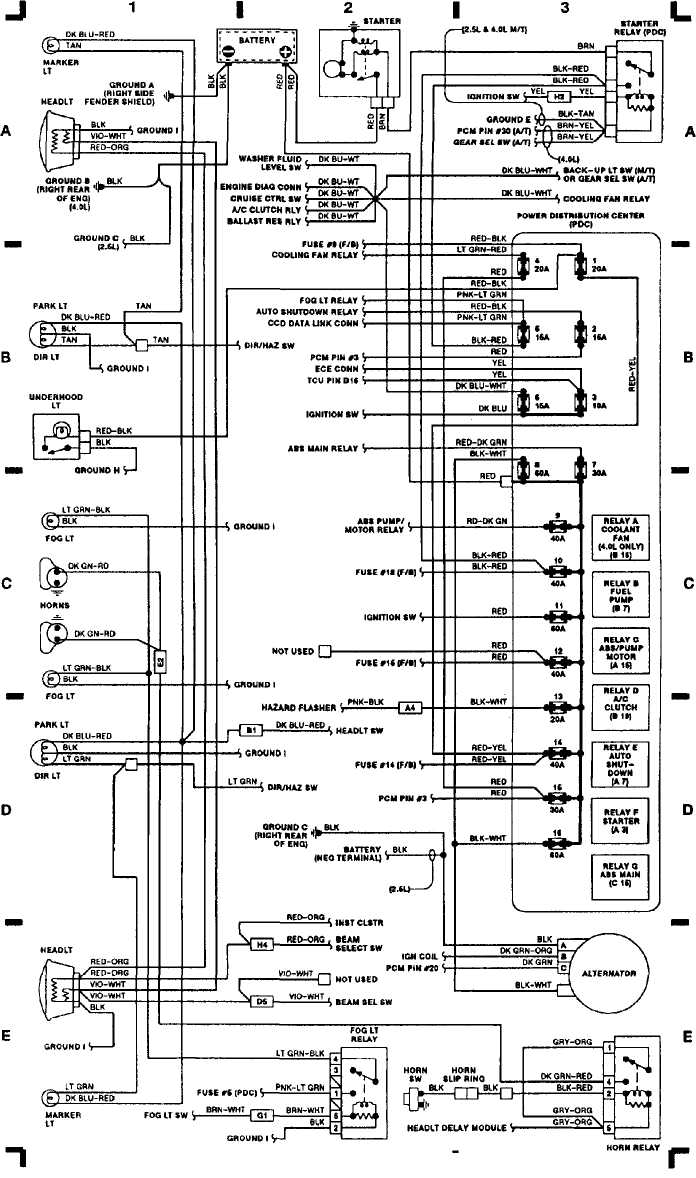

Fig. 1: Engine Compartment & Headlights (Grids 1-3)

Fig.

1 4 I 5

93F77839

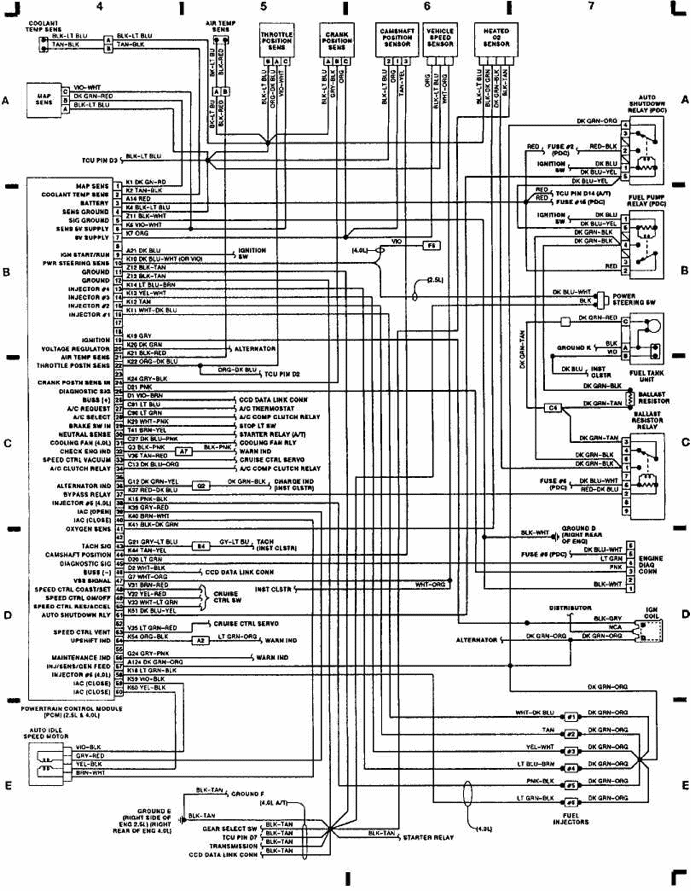

2: Powertrain Control Module

(PCM)

6 I 7

(2.5L & 4.0L) (Grids 4-7)

1 8

93177840

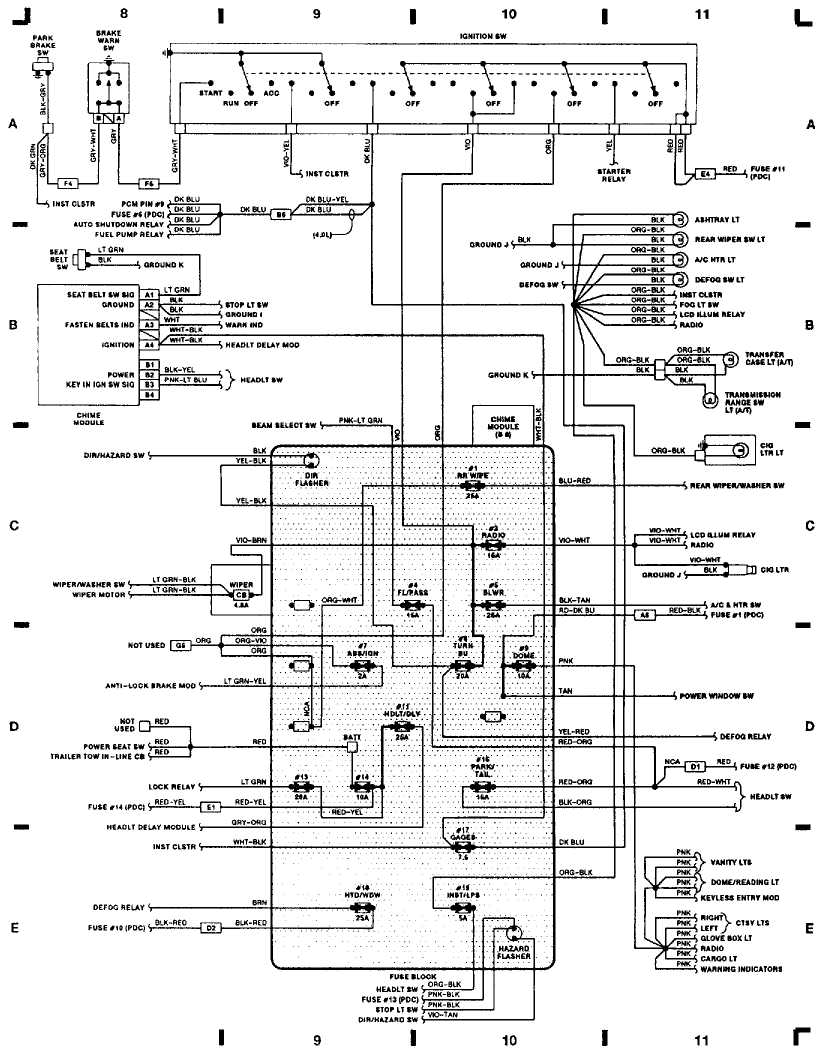

Fig. 3: Ignition Switch (Grids 8-11

1 12 I 13 I 14 I 15

93J77841

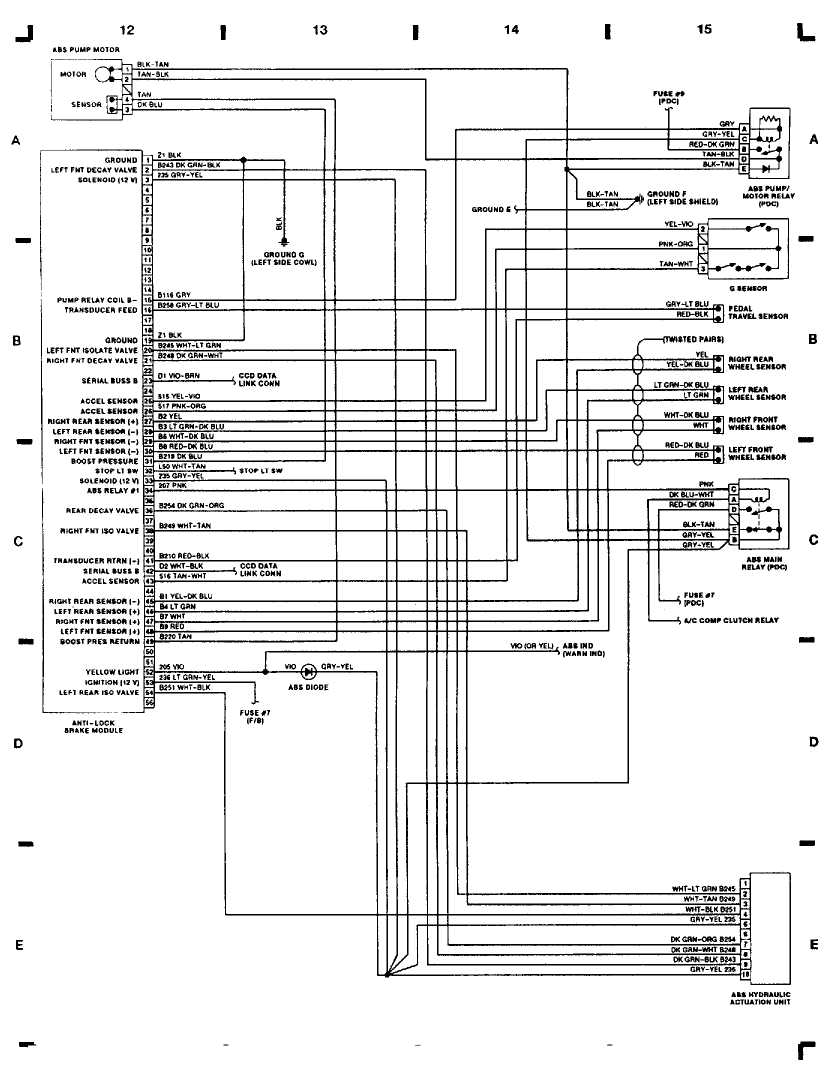

Fig. 4: Anti-Lock Brake Module, ABS Pump Motor (Grids 12-15)

П 16 I 17 I 18 I 19

93A77842

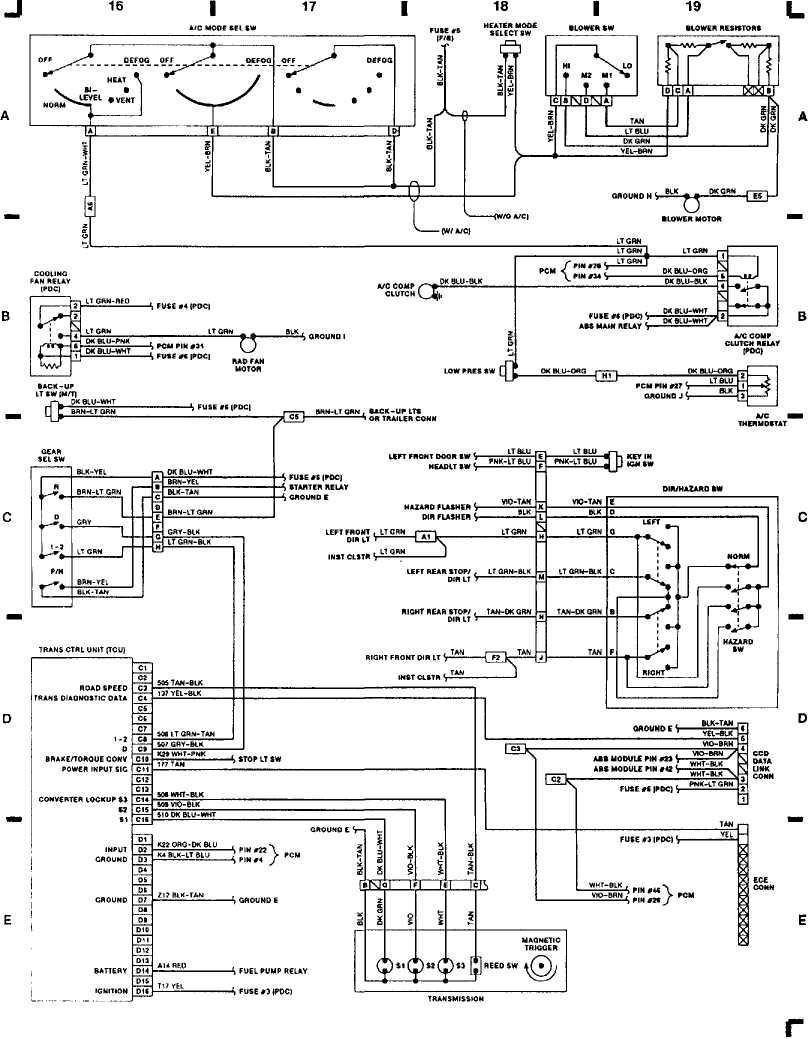

Fig. 5: Dir/Hazard Switch, Trans Control Unit (TCU) (Grids 16-19)

21 I 22 I 23

93B77843

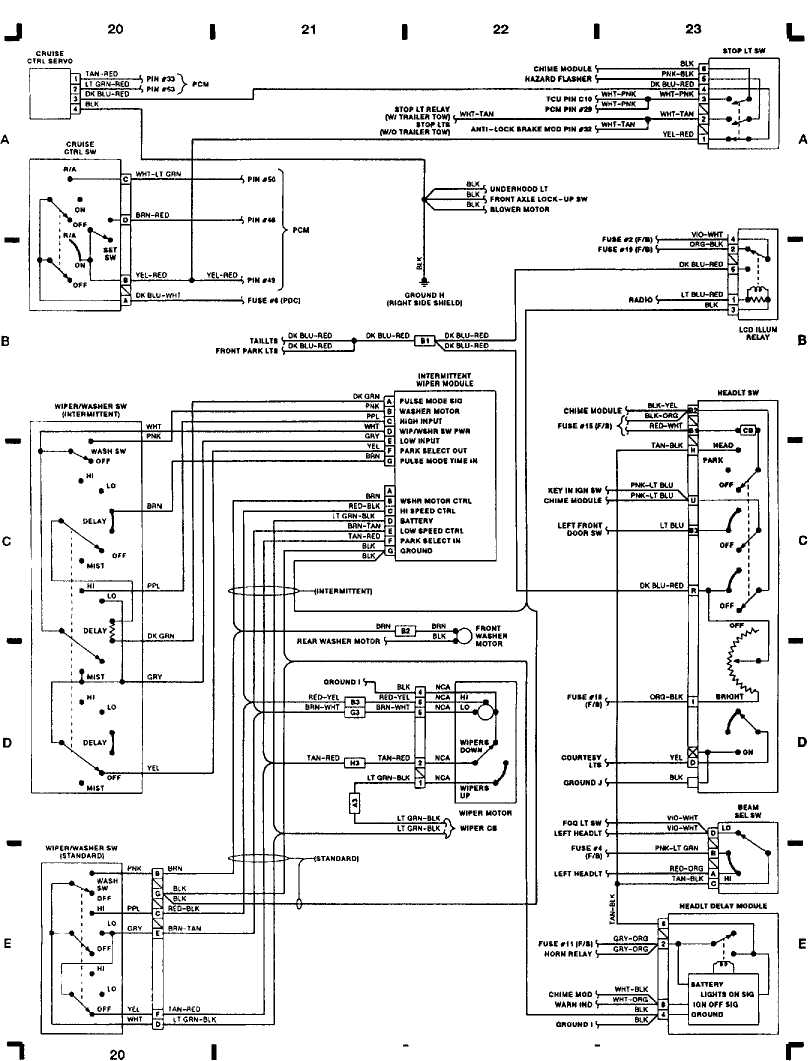

Fig. 6: Wiper/Washer Switches, Stop Light Switch (Grids 20-23)

T 24 I 25 I 26 I 27

93C77844

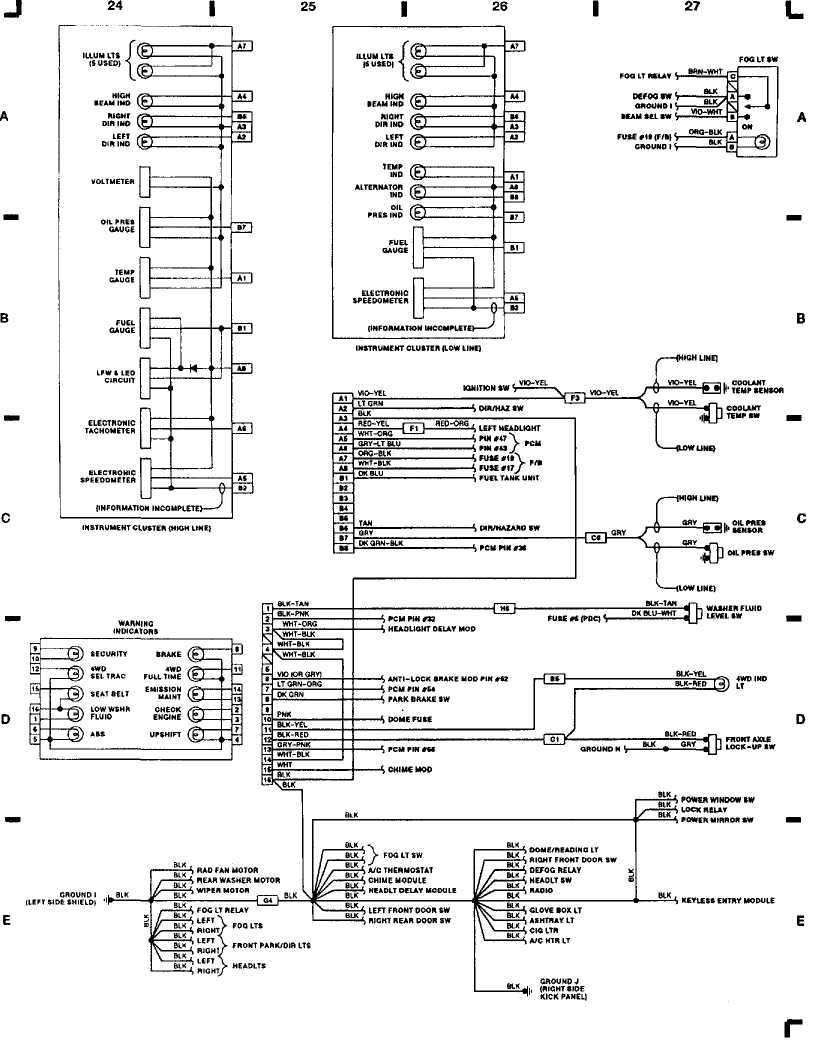

Fig. 7: Instrument Cluster (High Line), (Low Line) (Grids 24-27)

Fig.

Ti

93D77845

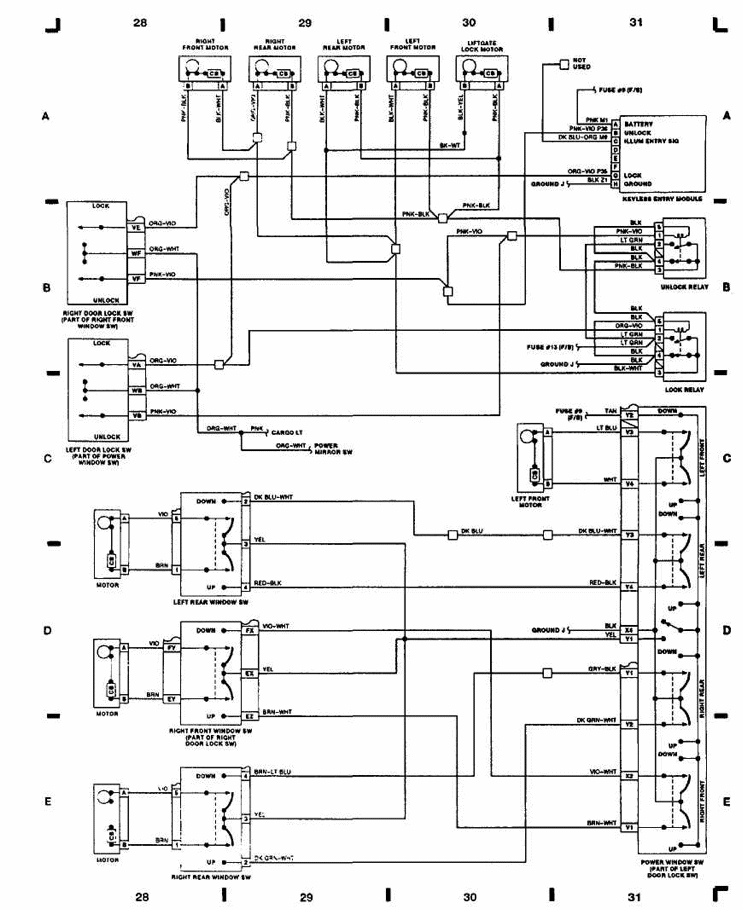

8: Power Window Switch, Right and Left Door Switch (Grids 28-31)

I 32 I 33 I 34 I 35

93E77846

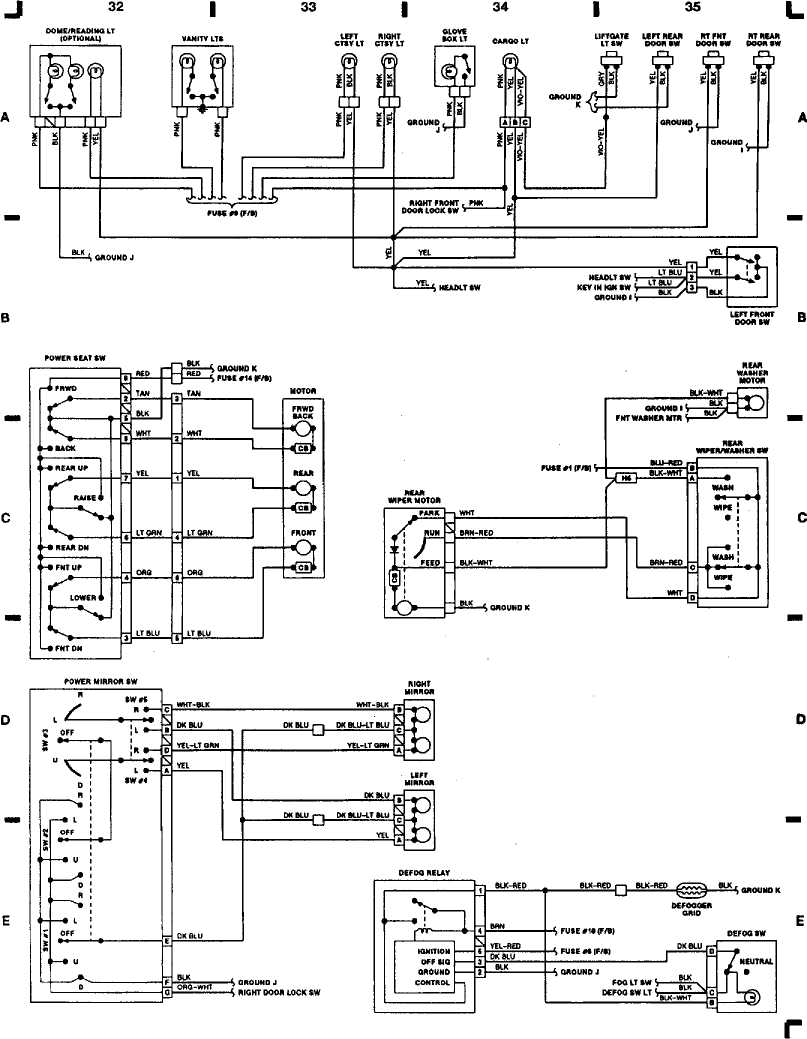

Fig. 9: Power Mirror Switch, Power Seat Switch (Grids 32-35)

1 36 I 37 I 38 I 39

93F77847

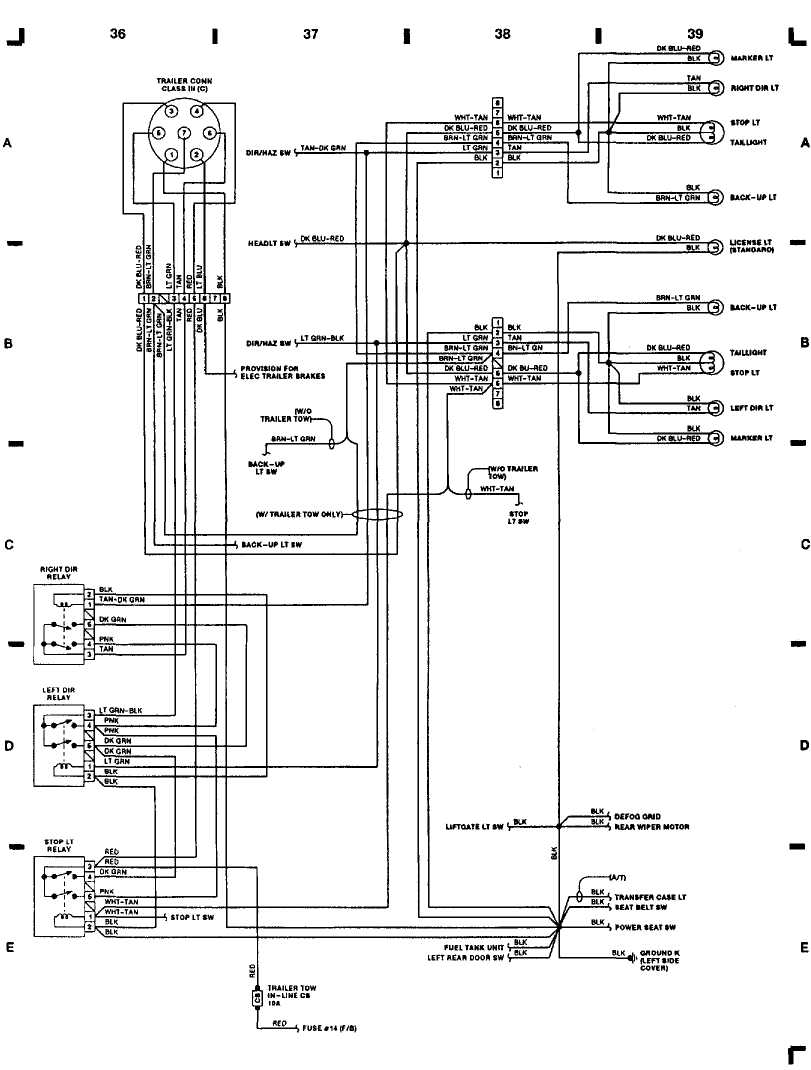

Fig. 10: Power Mirror, Window Switches & Taillights (Grids 36-39)

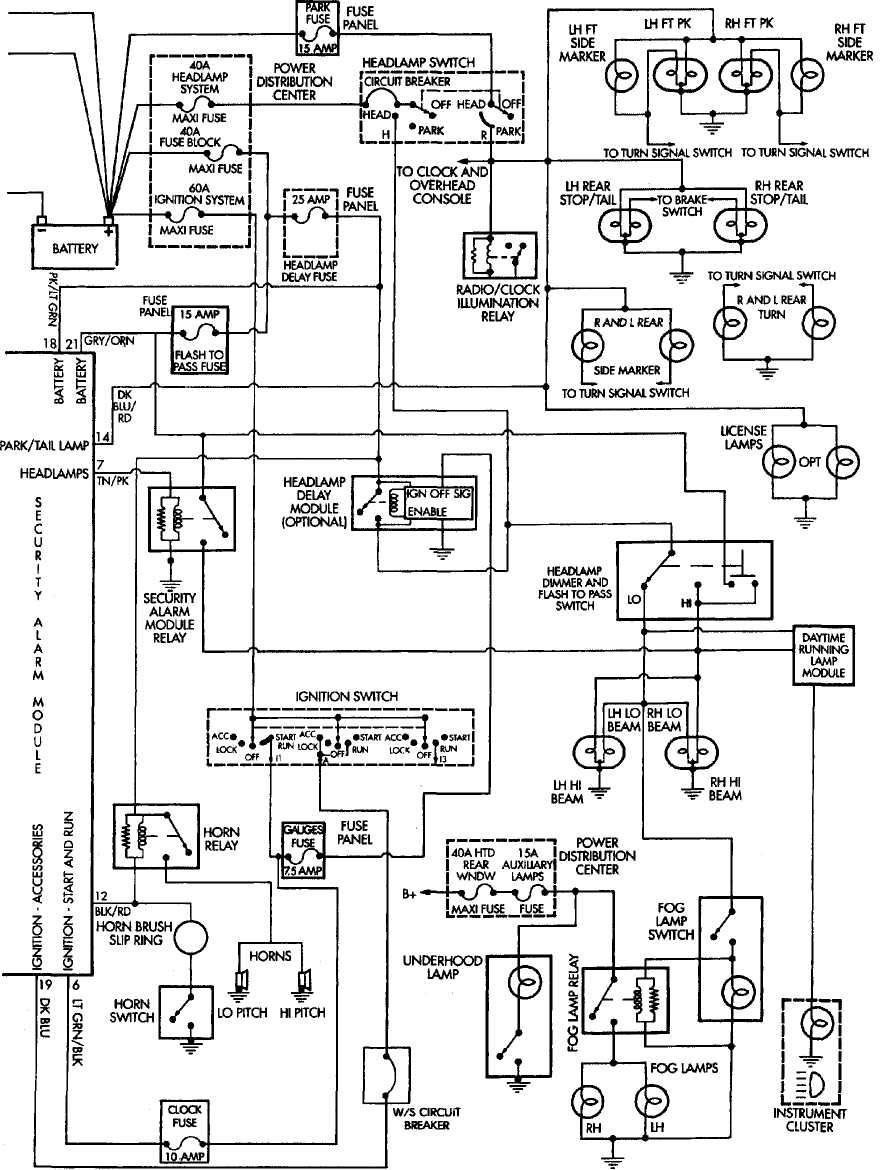

Fig. 11: Anti-Theft System (1 of 2)

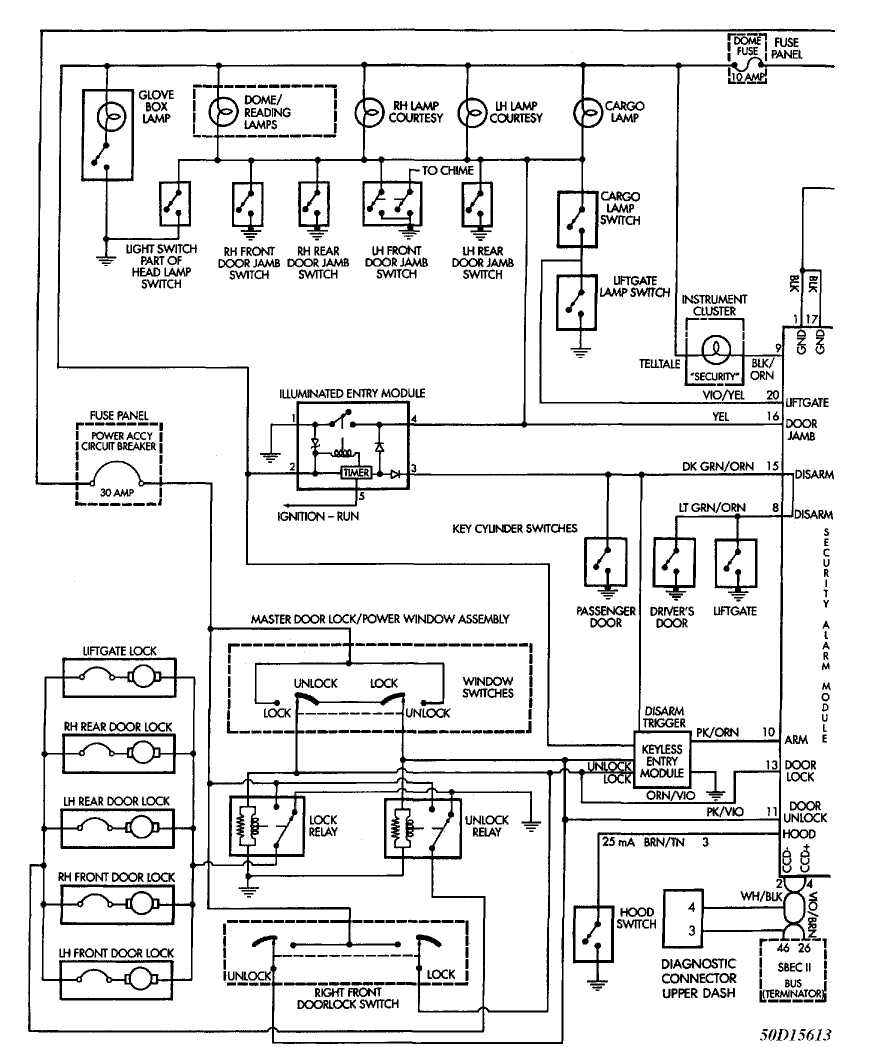

Fig. 12: Anti-Theft System (2 of 2)

50E15614
