ENGINE OIL PAN REMOVAL

1988 Jeep Cherokee

NOTE:

1988 ENGINES

Jeep - Engine Oil Pan Removal

Cherokee, Comanche, Wagoneer Wrangler, Grand Wagoneer

Only engine applications with special oil pan removal and installation procedures are included in this article. Illustrations of most manufacturers oil pans and attaching hardware are provided.

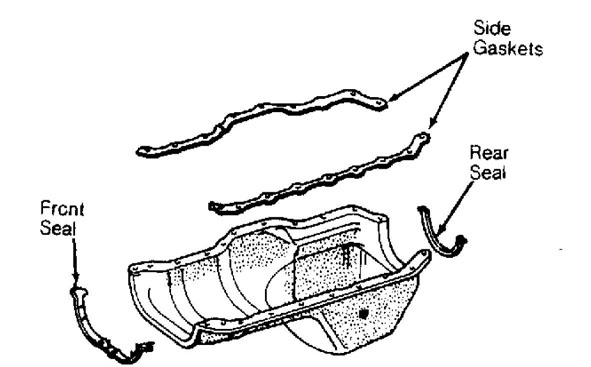

Fig. 1: View of Jeep 2.5L Oil Pan Courtesy of Chrysler Motors.

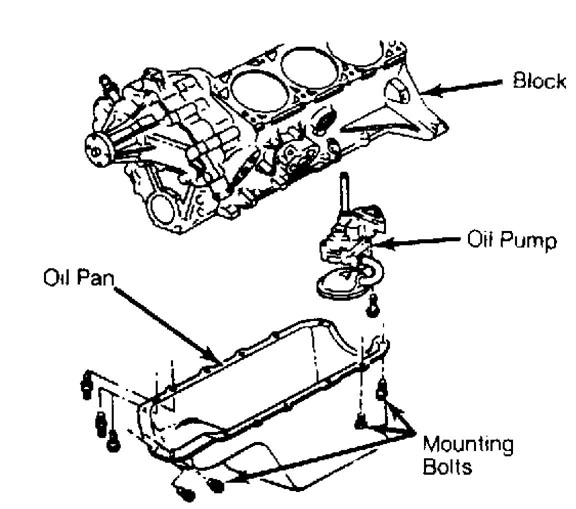

Fig. 2: View of Jeep 4.0L & 4.2L Oil Pan Courtesy of Chrysler Motors.
